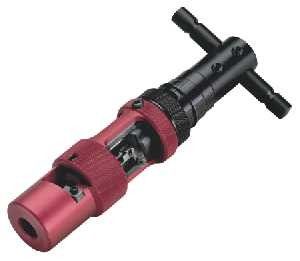

ALL-IN-ONE
, accurately strips the jacket, cores out the dielectric, strips and bevels the aluminum sheath - QJST color coded
JACKET STRIPPING BODY
2 STEP OPERATION WHEN USING FLOODED CABLES
STEP 1
- Remove the jacket with the removable QJST.
STEP 2
- Remove flooding compound from cable and use the QCST coring and stripping tool body to complete the preparation -
NEW DESIGN
conveniently attaches the jacket stripper body (QJST) to the main body of the coring and stripping tool by means of a "QUICK-CHANGE" rotating body ring - Jacket stripping body (QJST), when used separately to remove the jacket on flooded cable, is uniquely designed to automatically provide 3.50 inch (88.9mm) of jacket removal when rotated to the end of the body - Jacket stripper body and coring / stripping tool guide sleeve are all COLOR CODED for easy cable identification - CHAMFERED STRIP STOP per AT&T specifications is factory installed. A 1” (25.4 mm) stop for 412-750 tools and a 1-1/16” (27 mm) stop for 840-1160 tools - Pre-set jacket blade assures no scoring or nicking of aluminum sheath - MANUAL or DRILL operation; QCST tools have a standard "T" handle with a built-in 3/8 inch (9.5 mm) drill adapter; QCST-R tools have a RATCHET "T" handle and a separate 3/8 inch (9.5mm) drill adapter - Rugged, durable, ALL-METAL construction - Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit - Spiral-fluted, heat treated steel bit - Use of CC-100 or CC-200 Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping
Length: 3.9 in (99.99 mm)
Mfg/Brand Cablematic Ripley
