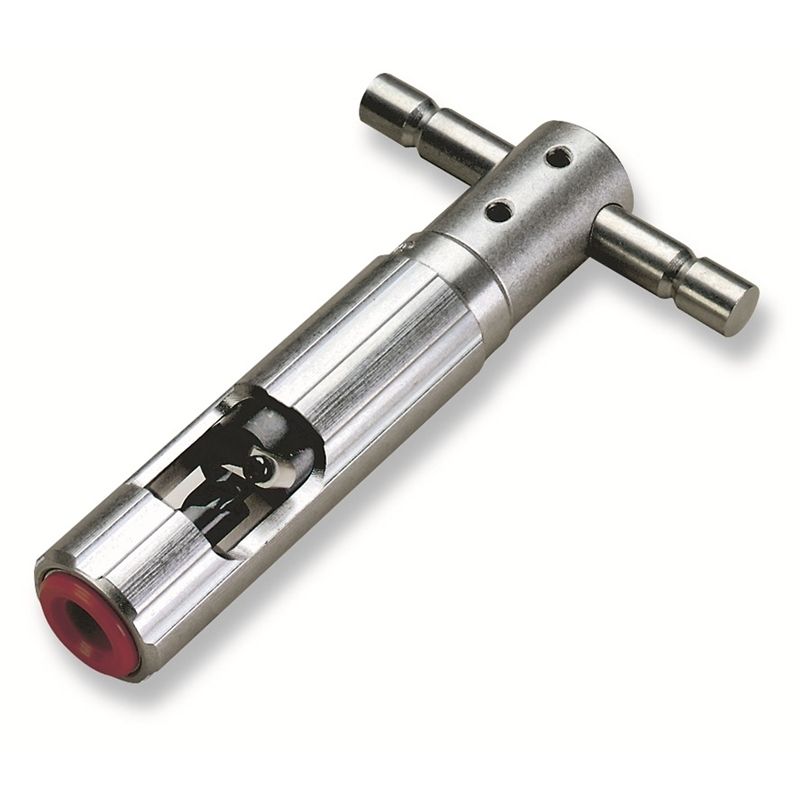

CST Coring & Stripping Tool
- CommScope P3 Cable, Times fiber T10 Cable - 1" - Combination tool cores and strips in one fast and precise operation - Manual or drill operation; CST tools have a standard "T” handle with a built-in 3/8 in. (9.5 mm) drill adapter; CST-R tools have a ratchet "T” handle and a separate 3/8 in. (9.5 mm) drill adapter - Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit - Spiral-fluted, heat-treated steel coring bit - Rugged, durable, all-metal construction - Strip stops available for exact stripping lengths of 0.50 to 2.00 in. (12.7 to 50.8 mm) - Color coded cable guide sleeves for easy cable size identification - Grooves on guide sleeve provide indication on when replacement is needed - Use of CC-100, CC-200 or CC-200EUR Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping - Made in the U.S.A - Length: 6.88 in. (175 mm) - Weight: 13 oz (369 g)
Mfg/Brand Cablematic Ripley
